Lined Butterfly / Ball / Plug Valve

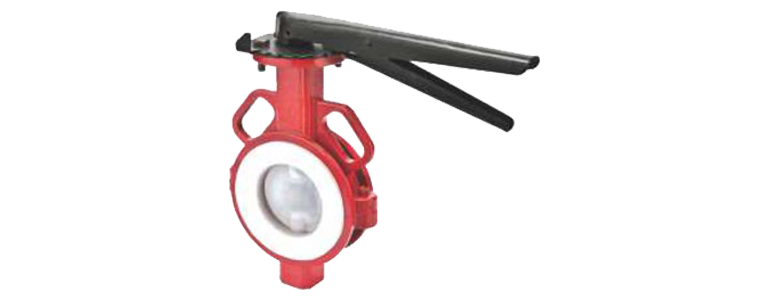

Lined Butterfly Valve
| Features | |
| Design STD | API 609 Cat A |
| Face to Face STD | API 609 Cat A |
| End Connection | Wafer / Semi Lug Type |
| Design | Centric – Resilent |
| Testing STD | API 598 |
| Lining Material | PFA, FEP |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| Model No | End | Class | Size In MM |
| 3A-1850 | Wafer | 150# | 15-400 |

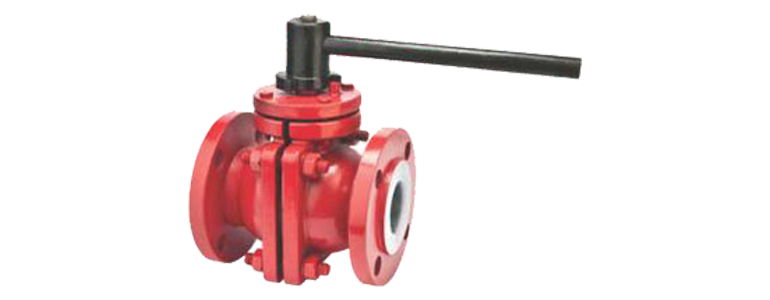

Lined Ball Valve
| Features | |
| Design STD | ISO 17292 |
| Face to Face STD | ASME B 16.10 |
| Flange End | ASME B 16.5 |
| Testing STD | API 598 |
| Lining Material | PFA, FEP |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| Model No | Bore | End | Class | Size In Mm |
| 3A-1840 | Full | F/E | 150# | 50-300 |
| 3A-1841 | Full | F/E | 150# | 50-150 |

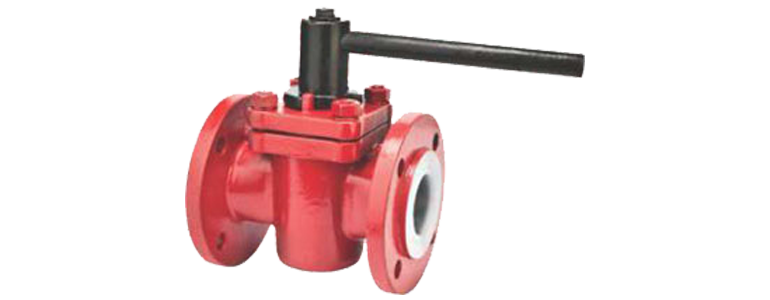

Lined Plug Valve
| Features | |
| Design STD | API 599 |
| Face to Face STD | ASME B 16.10 |
| Flange End | ASME B 16.5 |
| Testing STD | API 598 |
| Lining Material | PFA, FEP |
| Material | CF8, CF8M, WCB, Hastelloy, Super Duplex, Alloy 20 etc. |
| Model No | End | Class | Size In MM |
| 3A-1830 | F/E | 150# | 15-300 |
| 3A-1831 | F/E | 300# | 15-150 |
