Butterfly & Other Valves

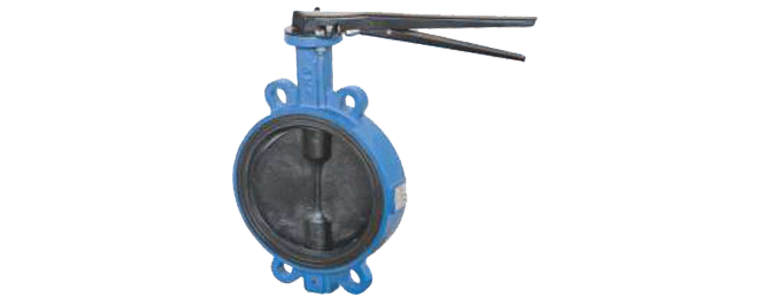

Butterfly Valve Wafer End
| Features | |
| Design STD | AWWA C 504, API 609 Cat A |
| Face to Face STD | AWWA C 504, API 609 Cat A |
| End Connection | Wafer Type |
| Testing STD. | API 598 |
| Model No | End | Class | Design | Size In MM |
| 3A-1510 | Wafer | 150# | Centric- Resilient | 50-900 |
| 3A-1530 | Wafer | 150# | Single- Eccentric | 50-1800 |
| 3A-1531 | Wafer | 150# | Double- Eccentric | 50-1200 |
| 3A-1550 | Wafer | 300# | Single- Eccentric | 50-1200 |
| 3A-1551 | Wafer | 300# | Double- Eccentric | 50-1200 |
| 3A-1570 | Wafer | 600# | Single- Eccentric | 50-600 |
| 3A-1571 | Wafer | 600# | Double- Eccentric | 50-600 |

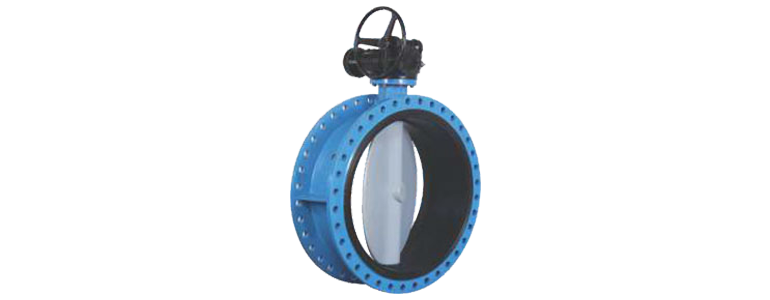

Butterfly Valve Flanged End
| Features | |
| Design STD | AWWA C 504, API 609 Cat B |
| Face to Face STD | AWWA C 504, API 609 Cat B |
| End Connection | Flange Type |
| Testing STD. | API 598 |
| Model No | End | Class | Design | Size In MM |

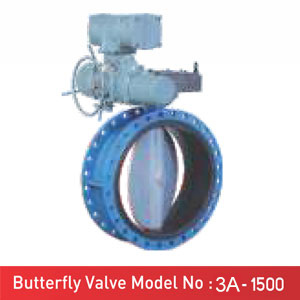

| 3A-1500 | Flanged | 150# | Centric- Resilient | 50-900 |
| 3A-1520 | Flanged | 150# | Single- Eccentric | 50-1800 |
| 3A-1521 | Flanged | 150# | Double- Eccentric | 50-1200 |
| 3A-1540 | Flanged | 300# | Single- Eccentric | 50-1200 |
| 3A-1541 | Flanged | 300# | Double- Eccentric | 50-1200 |
| 3A-1560 | Flanged | 600# | Single- Eccentric | 50-600 |
| 3A-1561 | Flanged | 600# | Double- Eccentric | 50-600 |
| 3A-1580 | Flanged | 150# | Triple- Eccentric | 50-600 |
| 3A-1593 | Flanged | 150# | Damper Low Leakage | 50-600 |

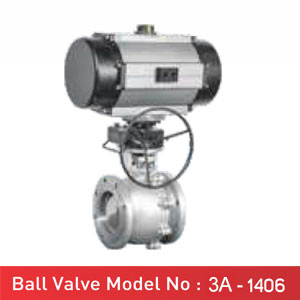

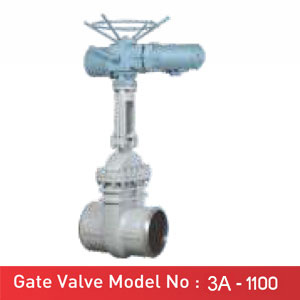

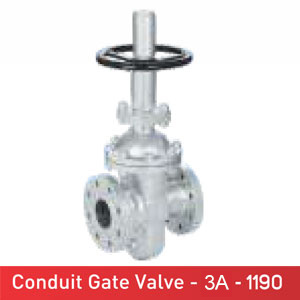

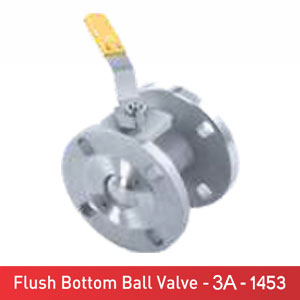

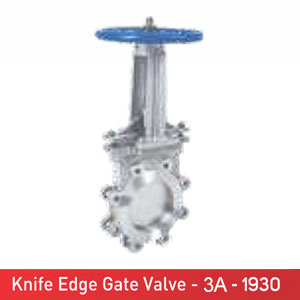

Our Other Products
